16. Basic Augmented Reality Demo (BARD)

16.1. Introduction

This series of tutorials aims to teach some of the concepts used in medical Augmented Reality (AR) applications.

16.2. The Idea

Augmented Reality (AR) is where additional information is used to augment the visual display of a scene. In medical terms, this normally occurs in two guises:

  • Video see through: The “reality” is represented by a video image from a medical

device such as a laparoscope or endoscope, which naturally displays on a monitor.

SmartLiver overlay.

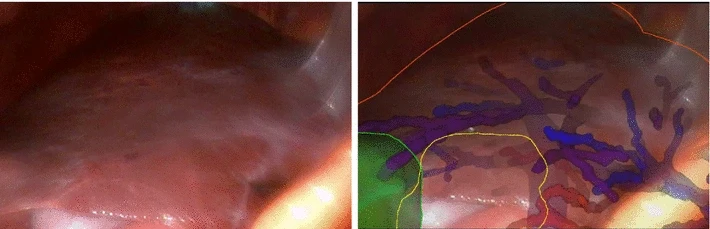

Fig. 16.1 Laparoscopic overlay, overlaying CT data onto laparoscopic video. This example taken from [Thompson2018], available here, licensed under CC BY-SA 4.0.

The overlaid information could come from pre-operative MR/CT data as shown above, or it could also be another live image modality. Take a look at this example from Xin Kang … Raj Shekhar and colleagues, from this article, where an ultrasound image is overlaid on the video. In this ultrasound example, the laparoscope and laparoscopic ultrasound are optically tracked.

In another example, Pratt et al. provide a pure vision based system:

Vision based overlay.

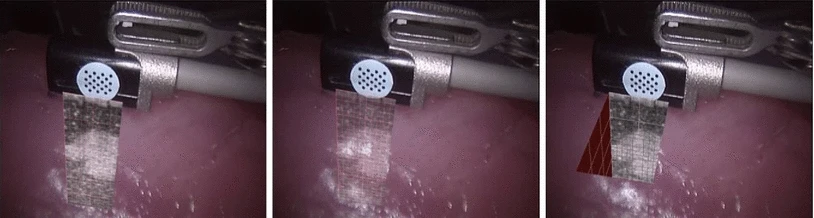

Fig. 16.2 Pratt et al. provide a vision based overlay, where the video camera itself tracks the position of the ultrasound probe. See Pratt et al, 2015.

In the vision system, the video camera provides the means for sampling the real scene, working out the pose of the ultrasound probe relative to the video camera, and the AR overlay itself.

  • Optical see through: The “reality” is directly observed via a visor, or semi-silvered mirror, onto which is projected additional information.

The most obvious example right now, is the Microsoft Hololens. See this example from ApoQlar, on the ApoQlar YouTube channel.

While we can’t develop such technology in a week, we can explore the general idea!

16.3. The Original Lab-Based Demo

Ordinarily, MedICSS is located at UCL. The original BARD project requires a physical phantom such as the pelvis phantom in our lab at UCL.

The pelvis phantom at UCL.

Fig. 16.3 Pelvis phantom at UCL.

We also have a CT scan of the phantom. The general idea is to take a webcam, register the CT coordinates to a reference marker, track the marker with a webcam and overlay the CT scan on the live video.

The overlay of a CT scan ontop of the webcam video.

Fig. 16.4 The overlay of the CT scan of the phantom on the live webcam feed, achieved using BARD, taken from a previous summer school.

This demonstrates Augmented (adding the CT data), Reality (represented by webcam video) as an example of video see through AR.

16.4. The New Home-Based Tutorials

However, in 2020, due to the pandemic, we developed a new series of tutorials with the aim of exploring each component of an AR system in turn.

As we can’t actually do an overlay onto a physical object, due to everyone being at home, the overlay tutorial focuses on implementing something similar to Pratt et al, 2015 where the video camera itself is doing the tracking.

Each tutorial should be fairly stand-alone, and suitable for completing at home, or for distance learning.

These tutorials are:

Have fun!
